G209卸扣
執(zhí)行標準：ISO2415-2004
安全系數(shù)：4
制造材料：合金鋼
產(chǎn)品顏色：銀色
|
產(chǎn)品型號 |
額載(t) |

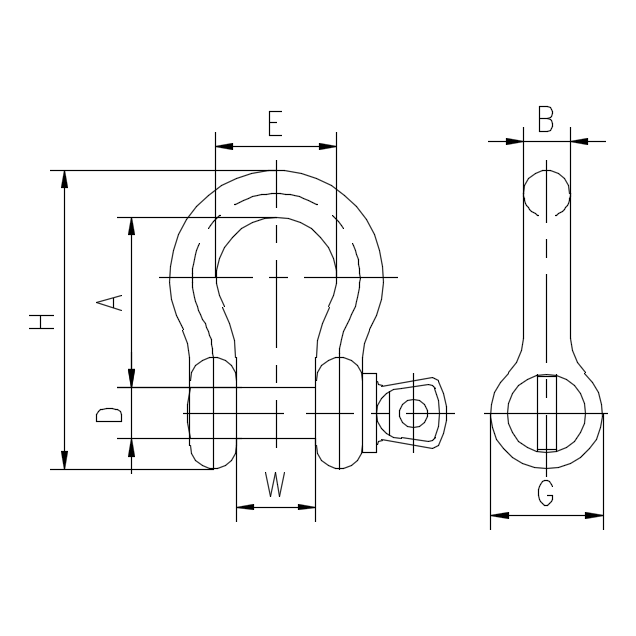

尺寸（mm） |
自重 kg/只 |
||||||
|
W |
D |
A |
B |
E |
G |
H |
|||
|
S-BW0.5-1/4 |
0.5 |
11.9 |
7.9 |
28.7 |
6.4 |
19.8 |
15.5 |
46.7 |
0.05 |
|
S-BW0.75-5/16 |
0.75 |
13.5 |
9.7 |
31.0 |
7.9 |
21.3 |
19.1 |
53.1 |
0.10 |
|
S-BW1-3/8 |
1 |
16.8 |
11.2 |
36.6 |
9.7 |
26.2 |
23.1 |
63.2 |
0.15 |
|
S-BW1.5-7/16 |
1.5 |
19.1 |
12.7 |
42.9 |
11.2 |
29.5 |
26.9 |
73.9 |
0.22 |
|
S-BW2-1/2 |
2 |
20.6 |
16.0 |
47.8 |
12.7 |
33.3 |
30.2 |
83.3 |
0.36 |
|
S-BW3.25-5/8 |
3.25 |
26.9 |
19.1 |
60.5 |
16.0 |
42.9 |
38.1 |
106.4 |
0.76 |
|
S-BW4.75-3/4 |
4.75 |
31.8 |
22.4 |
71.4 |
19.1 |
50.8 |
46.0 |
126.2 |
1.23 |
|
S-BW6.5-7/8 |
6.5 |
36.6 |
25.4 |
84.1 |
22.4 |
57.9 |
53.1 |
148.1 |
1.79 |
|
S-BW8.5-1 |
8.5 |
42.9 |
28.7 |
95.3 |
25.4 |
68.3 |
60.5 |
166.6 |
2.57 |
|
S-BW9.5-1 1/8 |
9.5 |
45.0 |
31.8 |
108.0 |
28.7 |
73.9 |
68.3 |
189.7 |
3.75 |
|
S-BW12-1 1/4 |
12 |
51.6 |
35.1 |
119.1 |
31.8 |
82.6 |
76.2 |
209.6 |
5.31 |
|
S-BW13.5-1 3/8 |
13.5 |
57.2 |
38.1 |
133.4 |
35.1 |
92.2 |
84.1 |
232.7 |
7.18 |
|
S-BW17-1 1/2 |
17 |
60.5 |
41.4 |
146.1 |
38.1 |
98.6 |
92.2 |
254.0 |
9.43 |
|
S-BW25-1 3/4 |
25 |
73.2 |
50.8 |
177.8 |
44.5 |
127 |
106.4 |
313.4 |
15.38 |
|
S-BW35-2 |
35 |
82.6 |
57.2 |
196.9 |
50.8 |
146.1 |
122.2 |
347.5 |
23.70 |
|
S-BW55-2 1/2 |
55 |
104.9 |
70.0 |
266.7 |
66.5 |
184.2 |
144.5 |
453.1 |
44.57 |
